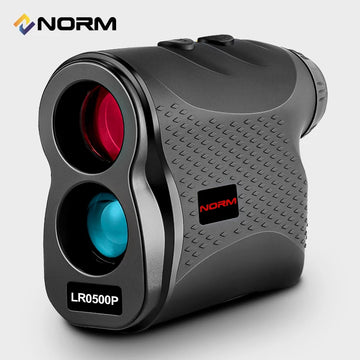

NORM 1500M Golf Laser Rangefinder Hunting OutdoorSport Survey 600M 900M 1200M 1500M Range
SPECIFICATIONS
Brand Name: Norm
NORM Model: LR
Hign-concerned Chemical: None
Origin: Mainland China
Power Type: Battery-Powered
Certification: CE
Model Number: LR Series Laser Rangefinder
Size: 105*82*43mm
Measurement Accuracy: 1m
Color: Black
Measuring unit: M/Yd
Field of view: 7°
Certification: CE
Measuring time: 0.5-1S
Battery: 2-AAA (Not included)
Magnification: 6X
Measurement Accuracy: 1m
Measurement Range: 5-600M,900M,1200M,1500M
Choice: yes
semi_Choice: yes
Product description
This product is suitable for professionals with distance measurement needs. Different types of products can be selected according to different needs. No matter for height measurement and speed measurement requirements, or for golf, foggy weather measurement, hunting and other activities, there are corresponding products to choose from.
Product packaging content
* 1 ranging telescope
* 1 Instructions in English
* 1 belt
* 1 Portable bag
* 1 carton
5 Mode Selections
A Fog Mode
B Speed Mode
C Distance Mode
D Pinseeker Mode or Height/Angle finder Mode
E GolfPro
A Fog Mode
(For LR0600 LR0900 LR1200 LR1500 LR0900H LR1200H LR1500H)
Aim at target object and short press power button. Then, the distance value will be displayed on lens.
B Speed Mode
(For LR0600 LR0900 LR1200 LR1500 LR0900H LR1200H LR1500H)
Aim at the object and short press the power button. Keep aiming as the object moves until the speed value displays on the screen.
C Distance Mode
Single distance measuring: Aim at target object and short press power button to start measuring. The measuring result would be displayed on the lens.
Continuous distance measuring: Long press the power button. The distance value would be displayed in real-time according to where you are pointing at.
D Height/Angle finder Mode
(For LR900H LR1200H LR1500H)
Height/Angle finder Mode is designed for measuring the height or angle of the buliding or trees.
LCD Display
1. “Scan” Continuous measuring mode
2. “Fog” Fog mode
3. “speed” Speed finder mode
4. “ Flag + Scan” Pinseeker mode（Golf）
5. “Battery” Low battery icon
6. “Rectangular” Target centre
7. “1888.8” Display numerical value. When there is no such numerical value, four dashes “----” would be displayed.
8. “Y KM/HS” Display measuring unit. In distance measuring mode, “M” or “Y” will be displayed. In speed finder mode, “KM/h” or “M/S” will be displayed
